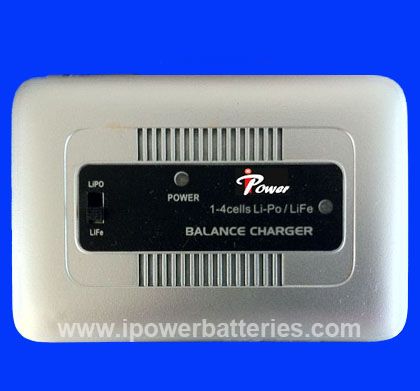

1. High efficiency 1-4 cells Li-ion/Lipo/LiFe Balance Charger with MCU control
2. Suitable for 1-4 cells Li-ion/Lipo/LiFe battery pack, charging with switch selection(Lipo/LiFe)
3. Built-in balancer. Batteries are automatically balanced during charging, ensuring full charge.
4. High power and high performance circuit.
5. Automatically terminate charging process when input voltage is higher than 16V or lower than 10V.
6. Reverse polarity and short circuit protection.
7. Over-charge and over-current protection.
8. Light and attractive Plastic case.
■ Specifications:
|
Details
|
Min.
|
Type
|
Max
|
|
Unit
|
|
Battery Type
|
Li-ion/LiPo/LiFe
|
|
|
Battery Cell
|
1~4S
|
|
|
Operating Temperature
|
|
Operating Temperature
|
-10
|
|
60
|
|
℃
|
|
Humidity (No Water-Drop)
|
0%
|
|
80%
|
|
RH
|
|
Storing Temperature
|
|
Temperature
|
-40
|
|
70
|
|
℃
|
|
Humidity (No Water-Drop)
|
0%
|
|
80%
|
|
RH
|
|
Specification
|
|
Input voltage
|
10
|
-
|
16
|
|
V
|
|
Input current
|
|
1.5
|
|
|
A
|
|
Max Output current
|
|
1
|
|
|
A
|
|
Balancing current
|
|
0.05
|
|
±0.01
|
A
|
|
Balancing precision
|
|
0.025
|
|
±0.01
|
V
|
|
Charging cutoff voltage (Li-ion/Lipo)
|
|
4.200
|
|
±0.03
|
|
|
Charging cutoff voltage (LiFe)
|
|
3.600
|
|
±0.05
|
V
|
|
Dimension
|
88x57.3x16.8
|
mm
|
|
Weight
|
100
|
g
|
| |
|
|
|
|
|
|
