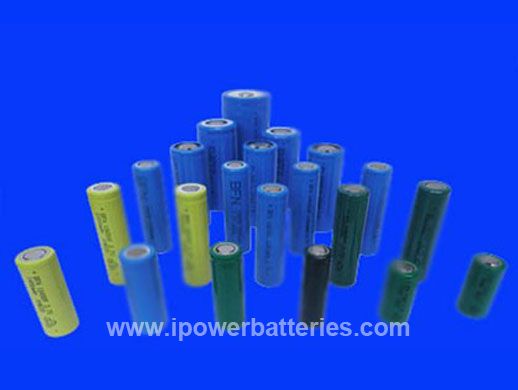

| Cylindrical LiFePO4 Battery(Energy Type) |
| This kind of high energy LiFePo4 battery with lithium iron phosphate as positive material features some advantages including highenergy, long cycle life, good safety and constant current, wide range environment adjustment etc. it’s widely applied to solar, flashand miner’s lighter, energy storage equipment,etc. |
|
|
| |
| 1. Cylindrical LiFePO4 Battery Specification List(Energy Type) |
| Model |
Nominal Voltage (V) |
Internal Resistance (Max mΩ) |
Capacity (mAh) |
Cell Size(mm) |
Charge Rate |
Discharge Rate |
Weight
(g) |
Diameter
(±0.3) |
Height
(±0.5) |
| 14500 |
3.2 |
100 |
600 |
14 |
50 |
0.2C-1C |
0.5C-2C |
18 |
| 18500 |
3.2 |
50 |
1100 |
18 |
50 |
0.2C-1C |
0.5C-2C |
32 |
| 18650 |
3.2 |
30 |
1500 |
18 |
65 |
0.2C-1C |
0.5C-2C |
39 |
| 22650 |
3.2 |
30 |
1900 |
22 |
65 |
0.2C-1C |
0.5C-2C |
60 |
| 26650 |
3.2 |
30 |
3300 |
26 |
65 |
0.2C-1C |
0.5C-2C |
84 |
| |
| 14500FE/ 600 MAH/3.2V Data Sheets: |
| Rated capacity (mAh) |
600 |
| Nominal voltage(V) |
3.2 |
| Weight energy density (Wh/Kg) |
≥91 |
| Volume energy density (Wh/L) |
≥250 |
| Charge and discharge voltage (V) |
2.0-3.6 |
| Adaptive temperature (℃) |
-20℃-80℃ |
| Cycle life (times) |
≥2000 @ 80% capacity |
| Charging method |
CC/CV |
| Over charge |
10V/3C |
| Mechanical hot shot |
130℃/30min |
| Penetration |
No explosion, no fire |
| Extrusion |
No explosion, no fire |
| Short circuit |
No explosion, no fire |
| Other electrochemistry performance |
GB 18287-2000 |
| Battery pack control system |
safe |
| |
| 2. Cylindrical LiFePO4 Battery(Power Type) |
| This kind of high energy LiFePo4 battery with lithium iron phosaphate positive material features some advantages including high discharge rate, long cycle life, good safety and constant current, wide range environment adjustment etc. it’s mainly applied to electric tool, toy and model, backup energy etc. |
| |
|
|
|
|
|
|
|
|
| Cylindrical LiFePO4 Battery Lists(Power Type) |
| Model |
Nominal Voltage (V) |
Internal Resistance (Max mΩ) |
Capacity (mAh) |
Cell Size(mm) |
Charge Rate |
Discharge Rate |
Weight
(g) |
Diameter
(±0.3) |
Height
(±0.5) |
| 14500 |
3.2 |
100 |
450 |
14 |
50 |
1C-4C |
10C-30C |
18 |
| 18650 |
3.2 |
30 |
1100 |
18 |
65 |
1C-4C |
10C-30C |
39 |
| 26650 |
3.2 |
20 |
2000 |
26 |
65 |
1C-4C |
10C-30C |
82 |
| 26650 |
3.2 |
30 |
2300 |
26 |
65 |
1C-4C |
10C-30C |
85 |
| |
| 18650FE/ 1100 MAH/3.2V Data Sheets: |
| Rated capacity (mAh) |
1100 |
| Nominal voltage(V) |
3.2 |
| Weight energy density (Wh/Kg) |
≥92 |
| Volume energy density (Wh/L) |
≥213 |
| Charge and discharge voltage (V) |
2.0-3.6 |
| Adaptive temperature (℃) |
-20℃-80℃ |
| Cycle life (times) |
≥2000 @ 80% capacity |
| Charging method |
CC/CV |
| Over charge |
10V/3C |
| Mechanical hot shot |
130℃/30min |
| Penetration |
No explosion, no fire |
| Extrusion |
No explosion, no fire |
| Short circuit |
No explosion, no fire |
| Other electrochemistry performance |
GB 18287-2000 |
| Battery pack control system |
safe |
