Cylindric Li-ion Battery

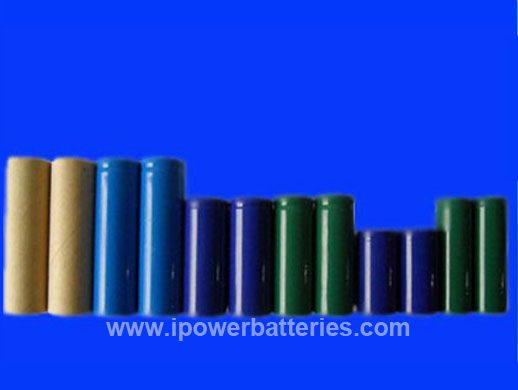

Cylindrical Lithium Ion Battery
These kinds of cylindrical lithium iron batteries are classified as LiCoO2,LiMnO4 and ternary material series according to the characterics of positive pole material. Each of them owns individual advantages. They are widely applied to notebook, computer, digital camera, flash lighter, RC toy, portable mobile energy etc.
1. Cylindrical Lithium-ion Battery Specification List (Power Type)
Model Nominal
 Voltage
(V)
Internal
Resistance
 (Max mΩ)
Capacity
(mAh)
Cell Size(mm) Charge
 Rate
Discharge
 Rate
Weight
(g)
Diameter
(±0.3)
Height
 (±0.5)
14500 3.7 60 650 14 50 0.5C-2C 10C-30C 18
16500 3.7 23 700 16 50 0.5C-2C 10C-30C 25
16500 3.7 22 800 16 50 0.5C-2C 10C-30C 26
18500 3.7 20 1100 18 50 0.5C-2C 10C-30C 32
18650 3.7 20 1300 18 65 0.5C-2C 10C-30C 40
18650 3.7 20 1500 18 65 0.5C-2C 10C-30C 43
22650 3.7 20 2000 22 65 0.5C-2C 10C-30C 63

2. Cylindrical Li-ion Battery Specification List(Energy Type)
Model Nominal Voltage (V) Internal Resistance (Max mΩ) Capacity (mAh) Cell Size(mm) Charge Rate Discharge Rate Weight
(g)
Diameter
(±0.3)
Height
 (±0.5)
10430 3.7 180 350 10 43 0.2C-1C 0.2C-1C 12
18650 3.7 70 2200 18 65 0.2C-1C 0.2C-1C 46
18650 3.7 70 2600 18 65 0.2C-1C 0.2C-1C 50

18650/ 2200 MAH/3.7V Data Sheets
Rated capacity (mAh) 2200
Nominal voltage(V) 3.7
Weight energy density (Wh/Kg) ≥173
Volume energy density (Wh/L) ≥490
Charge and discharge voltage (V) 3.0-4.2
Adaptive temperature (℃) -20℃-65℃
Cycle life (times) ≥500 @ 80% capacity
Charging method CC/CV
Over charge 10V/3C
Mechanical hot shot 130℃/30min
Penetration No explosion, no fire
Extrusion No explosion, no fire
Short circuit No explosion, no fire
Other electrochemistry performance GB 18287-2000
Battery pack control system safe
