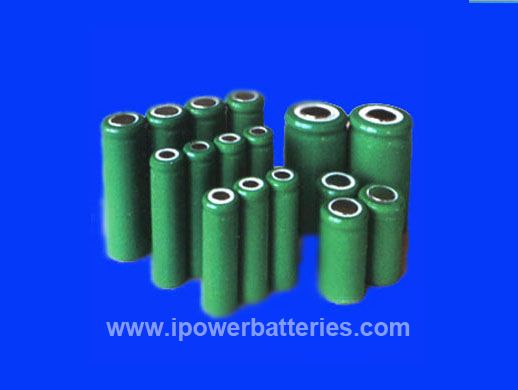

NiMH Single Battery

NiMH Features:
  1. Environmentally friendly
  2. Long service life
  3. High energy density
  4. Flat discharge performance
  5. No memory effect
  6. High drain performance
  7. High reliability
Ni-MH Normal series
Type Model  Voltage
(V)
Capacity
(mAh)
Height
(mm)
Diameter
(mm)
AAA NH-AAA600J 1.2 600 44.0±0.5 10.0±0.2
AAA NH-AAA600 1.2 600 43.5±0.5 10.0±0.2
AAA NH-AAA650J 1.2 650 44.0±0.5 10.0±0.2
AAA NH-AAA650 1.2 650 43.5±0.5 10.0±0.2
AAA NH-AAA700J 1.2 700 44.0±0.5 10.0±0.2
AAA NH-AAA700 1.2 700 43.5±0.5 10.0±0.2
AAA NH-AAA800J 1.2 800 44.0±0.5 10.1±0.2
AAA NH-AAA800 1.2 800 43.5±0.5 10.0±0.2
AAA NH-AAA850J 1.2 850 44.0±0.5 10.1±0.2
AAA NH-AAA850 1.2 850 43.5±0.5 10.0±0.2
1/4AAA NH-1/4AAA70 1.2 70 10.5±0.5 10.1±0.2
2/5AAA NH-2/5AAA200 1.2 200 20.2±0.5 10.0±0.2
1/3AAA NH-1/3AAA120 1.2 120 14.6±0.5 10.0±0.2
1/2AAA NH-1/2AAA230 1.2 230 23.5±0.5 10.0±0.2
2/3AAA NH-2/3AAA300 1.2 300 27.5±0.5 10.0±0.2
4/5AAA NH-4/5AAA500 1.2 500 37.5±0.5 10.0±0.2
5/4AAA NH-5/4AAA750 1.2 750 50.5±0.5 10.0±0.2
AA NH-AA600J 1.2 600 49.5±0.5 13.9±0.2
AA NH-AA900J 1.2 900 49.5±0.5 13.9±0.2
AA NH-AA900 1.2 900 48.0±0.5 13.9±0.2
AA NH-AA1100J 1.2 1100 49.5±0.5 13.9±0.2
AA NH-AA1100 1.2 1100 48.0±0.5 13.9±0.2
AA NH-AA1200J 1.2 1200 49.5±0.5 13.9±0.2
AA NH-AA1200 1.2 1200 48.0±0.5 13.9±0.2
AA NH-AA1300J 1.2 1300 49.5±0.5 13.9±0.2
AA NH-AA1300 1.2 1300 48.0±0.5 13.9±0.2
AA NH-AA1500J 1.2 1500 49.5±0.5 13.9±0.2
AA NH-AA1500 1.2 1500 48.0±0.5 13.9±0.2
AA NH-AA1600J 1.2 1600 49.5±0.5 13.9±0.2
AA NH-AA1600 1.2 1600 48.0±0.5 13.9±0.2
AA NH-AA1700J 1.2 1700 49.5±0.5 13.9±0.2
AA NH-AA1700 1.2 1700 48.0±0.5 13.9±0.2
AA NH-AA1800J 1.2 1800 50.0±0.5 14.2±0.2
AA NH-AA1800 1.2 1800 48.0±0.5 14.2±0.2
AA NH-AA2000J 1.2 2000 50.0±0.5 14.2±0.2
AA NH-AA2000 1.2 2000 48.0±0.5 14.2±0.2
AA NH-AA2200J 1.2 2200 50.0±0.5 14.2±0.2
AA NH-AA2200 1.2 2200 48.0±0.5 14.2±0.2
AA NH-AA2300J 1.2 2300 50.0±0.5 14.2±0.2
AA NH-AA2400J 1.2 2400 50.0±0.5 14.2±0.2
1/3AA NH-1/3AA300 1.2 300 16.3±0.5 13.9±0.2
2/5AA NH-2/5AA400 1.2 400 21.0±0.5 13.9±0.2
1/2AA NH-1/2AA500 1.2 500 24.0±0.5 13.9±0.2
2/3AA NH-2/3AA300 1.2 300 28.1±0.5 13.9±0.2
2/3AA NH-2/3AA600 1.2 600 28.1±0.5 13.9±0.2
2/3AA NH-2/3AA650 1.2 650 28.1±0.5 13.9±0.2
2/3AA NH-2/3AA700 1.2 700 28.1±0.5 13.9±0.2
4/5AA NH-4/5AA1200 1.2 1200 42.6±0.5 13.9±0.2
7/5AA NH-7/5AA1800 1.2 1800 64.5±0.5 13.9±0.2
A NH-A2100 1.2 2100 49.0±0.5 16.60±0.2
1/2A NH-1/2A1000 1.2 1000 27.4±0.5 16.3±0.2
1/2A NH-1/2A1100 1.2 1100 27.4±0.5 16.3±0.2
2/5A NH-2/5A600 1.2 600 21.5±0.5 16.60±0.2
4/5A NH-4/5A1800 1.2 1800 42.1±0.5 16.60±0.2
4/5A NH-4/5A2000 1.2 2000 42.1±0.5 16.60±0.2
7/5A NH-7/5A3500 1.2 3500 66.0±0.5 16.60±0.2
7/5A NH-7/5A3800 1.2 3800 66.0±0.5 16.60±0.2
SC NH-SC2400 1.2 2400 42.0±0.5 22.0±0.2
SC NH-SC2800 1.2 2800 42.0±0.5 22.0±0.2
SC NH-SC3000 1.2 3000 42.0±0.5 22.0±0.2
SC NH-SC3300 1.2 3300 42.0±0.5 22.0±0.2
4/5SC NH-4/5SC2000 1.2 2000 32.5±0.5 22.0±0.2
5/4SC NH-5/4SC3500 1.2 3500 49.0±0.5 22.0±0.2
C NH-C2500J 1.2 2500 49.0±0.5 25.2±0.2
C NH-C2500 1.2 2500 49.0±0.5 25.2±0.2
C NH-C3300J 1.2 3300 49.0±0.5 25.2±0.2
C NH-C3300 1.2 3300 49.0±0.5 25.2±0.2
C NH-C3700J 1.2 3700 49.0±0.5 25.2±0.2
C NH-C3700 1.2 3700 49.0±0.5 25.2±0.2
C NH-C4000J 1.2 4000 49.0±0.5 25.2±0.2
C NH-C4000 1.2 4000 49.0±0.5 25.2±0.2
C NH-C4500J 1.2 4500 49.0±0.5 25.2±0.2
C NH-C4500 1.2 4500 49.0±0.5 25.2±0.2
D NH-D5000J 1.2 5000 60.5±0.5 32.1±0.2
D NH-D5000 1.2 5000 59.0±0.5 32.1±0.2
D NH-D8000J 1.2 8000 60.5±0.5 32.3±0.2
D NH-D8000 1.2 8000 59.0±0.5 32.1±0.2
D NH-D8500 1.2 8500 59.0±0.5 32.1±0.2
D NH-D9000J 1.2 9000 60.5±0.5 32.1±0.2
D NH-D9000 1.2 9000 59.0±0.5 32.1±0.2
1/2D NH-1/2D3500J 1.2 3500 36.5±0.5 32.1±0.2
1/2D NH-1/2D3500 1.2 3500 35.0±0.5 32.1±0.2
F NH-F13000J 1.2 13000 90.5±0.5 32.1±0.2
F NH-F13000 1.2 13000 89.0±0.5 32.1±0.2
Remark: J - high top.

Ni-MH High Power series
Type Model  Voltage
(V)
Capacity
(mAh)
Height
(mm)
Diameter
(mm)
AAA NH-AAA750P 1.2 750 43.1 10.1
AA NH-AA2000P 1.2 2000 48.5 14
2/3A NH-2/3A1000P 1.2 1000 28 16.5
2/3A NH-2/3A1200P 1.2 1200 28 16.5
2/3A NH-2/3A1400P 1.2 1400 28 16.5
2/3A NH-2/3A1600P 1.2 1600 28 16.5
4/5A NH-4/5A1800P 1.2 1800 42 16.5
4/5A NH-4/5A2000P 1.2 2000 42 16.5
4/5SC NH-4/5SC2200P 1.2 2200 33.5 22.1
SC NH-SC2500P 1.2 2500 42.5 22.1
SC NH-SC2800P 1.2 2800 42.5 22.1
SC NH-SC3000P 1.2 3000 42.5 22.1
SC NH-SC3300P 1.2 3300 42.5 22.1
SC NH-SC3600P 1.2 3600 42.5 22.1
SC NH-SC3800P 1.2 3800 42.5 22.1
SC NH-SC4200P 1.2 4200 42.5 22.1
SC NH-SC4600P 1.2 4600 42.5 22.1

Ni-MH High Temperature series
Type Model Voltage
(V)
Capacity
(mAh)
Height
(mm)
Diameter
(mm)
AA NH-AA1300H 1.2 1300 48.0±0.5 13.9±0.2
4/5A NH-4/5A1400H 1.2 1400 42.1±0.5 16.6±0.2
SC NH-SC2400H 1.2 2400 42.0±0.5 22.0±0.2
SC NH-SC2800H 1.2 2800 42.0±0.5 22.0±0.2
5/4SC 5/4SC3000H 1.2 3000 49.0±0.5 22.0±0.2
C NH-C3800H 1.2 3800 49.0±0.5 25.2±0.2
C NH-C4000H 1.2 4000 49.0±0.5 25.2±0.2
D NH-D7000H 1.2 7000 59.0±0.5 32.3±0.2
1/2D NH-1/2D3300H 1.2 3300 35.0±0.5 32.1±0.2
Remark:
1)H-high temperature series.
2)high recharge-discharge temperature:70
